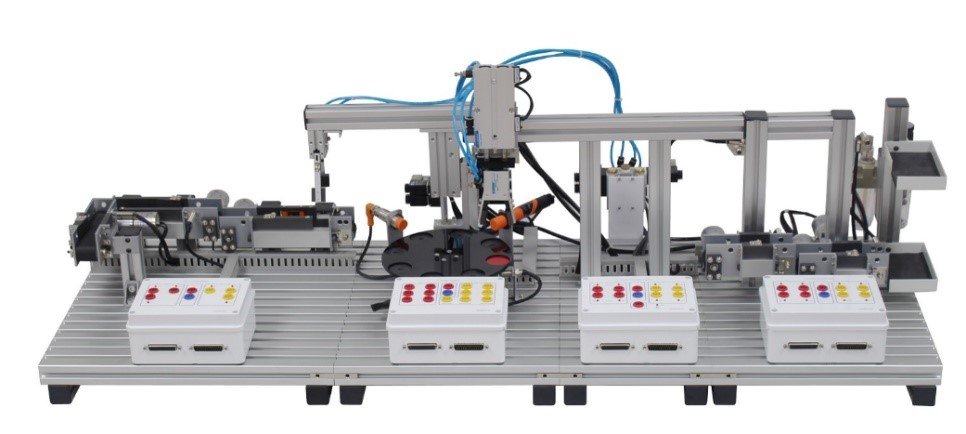

Brand New 4 Station System Simulation Training Equipment
คุณสมบัติสินค้า:
SKU : Z0508-913
หมวดหมู่ : วิศวกรรมแมคคาทรอนิกส์ ,
Share
Brand New 4 Station System Simulation Training Equipment
1. Applications
- It is a training set that is specially produced for educational purposes. Simulation of industrial automation control systems, emphasizing the transmission of workpieces. workpiece sorting conveyor belt control moving the workpiece by lifting the handle mounted on aluminum profile base, separated into 4 continuous working stations.
Students can learn:
- To operate control system of the Conveyor Belt, Turn table, Positioning 2 Axis and Lifting Platform.
- To write a program to control the operation according to the conditions
- To apply PLC programs onto the equipment.
- To learn to control individual stations or the whole process.
- To operate different types of sensors and materials.
- To study the operations of air grippers
2. System Specifications
This training equipment this equipped with the following components:
- First station: Conveyor Belt set: 1 set. The set includes:
· Electronically controlled conveyor. Movements controlled by electrical motor.
· Conveyor belt with width at least 3cm; 3 sets of conveyor belts
· Conveyor belt rollers and other movement components; 3 sets
· Input / Output connection ports for PLC connection; 3IN/3OUT provided.
· A socket connection box provided for PLC connection.
· Ability to connect to PLC via 2 methods: 1.
· Continuous wiring with experimental wires 2. 25-pin wires.
· Aluminum profile base at least 400x400mm.
- Second station: Testing section set: 1 set
· For workpiece inspection and operate by electrical system. Drive systems are operated by electrical motor and air cylinders.
· A rotating disc is installed for workpiece inspection. The workpiece will be placed on the disc which will rotate to the sensor. Positions are detected and controlled by the sensor.
· 1 set of air cylinder set controlling to UP and DOWN position of the mechanical arm.
· 1 set of air cylinder set controlling to LEFT and RIGHT position of the mechanical arm.
· 1 set of air cylinder controlling the gripper of the mechanical arm.
· 1 set of rotating disc for workpiece inspection procedure.
· 1 set of inductive proximity sensor for detection and sorting of workpiece.
· 1 set of capacitive proximity sensor for detection and sorting of workpiece.
· 5 sets of position sensor.
· Input / Output provided for PLC connection; 7IN / 6OUT.
· A socket connection box provided for PLC connection.
· Ability to connect to PLC via 2 methods: 1.
· Continuous wiring with experimental wires 2. 25-pin wires.
· Aluminum profile base at least 400x300mm.
- Third station: 1 set of 2-Axis Positioning: 1 set
· Vertical and horizontal workpiece transportation system. Controlled and driven by electrical motor and air cylinder.
· 1 set of an electrical motor drive set for LEFT and RIGHT movement.
· 1 set of an air cylinder drive set for UP and DOWN movement.
· 4 sets of position sensor provided.
· 1 set of air gripper
· Input / Output for PLC connection; 4IN / 5OUT.
· A socket connection box for PLC connection.
· Ability to connect to PLC via 2 methods: 1. Continuous wiring with experimental wires 2. 25-pin wires.
· Aluminum profile at least base 400x200mm.
- Fourth station: 1 set of lifting platforms: 1 set
· Lifts the workpiece over specific height. Operated using electrical motor and components.
· Ability to lift the workpiece higher than 5cm.
· At least 2 sets of 3cm-wide conveyor.
· At least 4 sets of position sensors
· Input / Output for PLC connection; 4IN / 4OUT.
· A socket connection box for PLC connection.
· Ability to connect to PLC via 2 methods: 1. Continuous wiring with experimental wires 2. 25-pin wires.
· Aluminum profile base at least 400x300mm.
- Power supply: 1 set
· Input: 220Vac / 50Hz
· Output at least: 24VCD, 5A max. Unregulated.
- Air compressor with pressure regulator: 1 set
· Input: 220Vac 50/60 Hz
· Power rated: at least ¼ HP
· Pressure rated: Max 7 Bar
· Pressure adjustment: at least 1-7 Bar
· Capacity: at least 36L
- Experimental wires: continuous connection type: 1 set
· Safety wires (L=100cm, cross sectional area=1 mm2)
60 wires
- DB 25-pin experimental wires: 1 set
· At least 4 wires
- PU air tubes: 1 set
· A tube of 10 meter of at least 6mm diameter.
· A tube of 10 meter of at least 4mm diameter.
- Automatic Voltage Regulator: 1 set
3. Software and Computer
- User manual and experimental guide documents provided in English.
- 2 Laptop provided with the following details:
- At least (CPU) 4 cores gen11, speed 2.4 GHz Cache 8MB
- At least memory (RAM) is DDR4 3200MHz 8GB,
- At least storage 256GB of 3.0 SSD.
- At least screen size 14 inches, resolution 1920 x 1080,
- 3 USB ports or better
- HDMI and VGA connectors
- At least 720p HD camera and there is a privacy shutter installed from the factory.
- Speakers and microphone installed from the factory.
- Connector RJ-45 connector that supports 10/100/1000 Mbps.
- Wireless (Wireless LAN) standard 802.11ax and BT 5.0 installed from the factory.
- Hardware Security TPM v2.0 installed at the factory.
- Finger print device with a power button.
- Weighing 1.5 kg including battery or lighter
- Certified according to various standards The following documents must be referenced.
- Assembled or manufactured in a factory that has received ISO 9001 and ISO14001 Series standards.
- Certified Standards FCC Electromagnetic Radiation
- Certified for safety, UL and CB.
4. Standard
- Requirement for ISO 9001:2015, or equivalent for Quality Management
- Manufacturer must have at least 10 years’ experience manufacturing similar training equipment
5. Maintenance and Service
- Supplier must have experience of specialist/technical support with similar equipment.
- Services are available through online consultation, spare parts transport, and service must be available locally or in neighboring countries (Southeast Asia). Technical service must be provided within 2 weeks after request.
- On-site training for a maximum of 10 people for at least 2 days at the time of installation to ensure the participants know how use the instruments.
6. Warranty: 2-year spare part and Services
